商品の詳細:
|
| ブランド: | クラウンエクストラ | 製品名: | 爆発防止の防水灯 GYD720 |
|---|---|---|---|
| モデル: | GYD720 | 電圧: | AC 100-277V、50Hz/60Hz：24/36VDC |
| 効率: | 135lm/w | CRI: | RA：80以上 |
| CCT: | 3000/4000/5000/5700K | 取り付け: | ブラケット 天井 吊り 路灯 壁 |
| 使用法: | 産業 | 作業温度: | -55℃〜+60℃ |

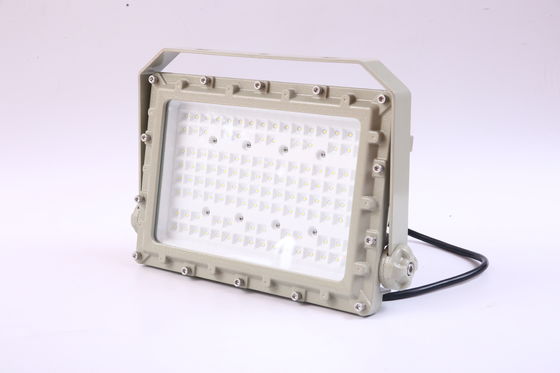

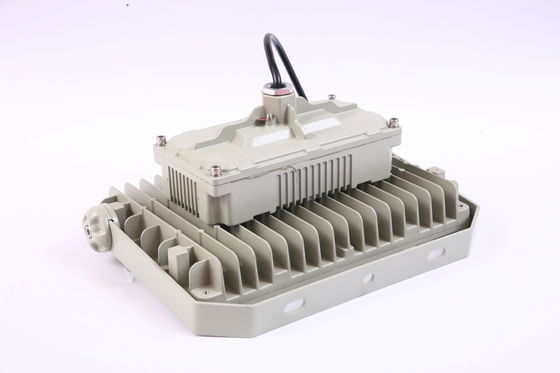

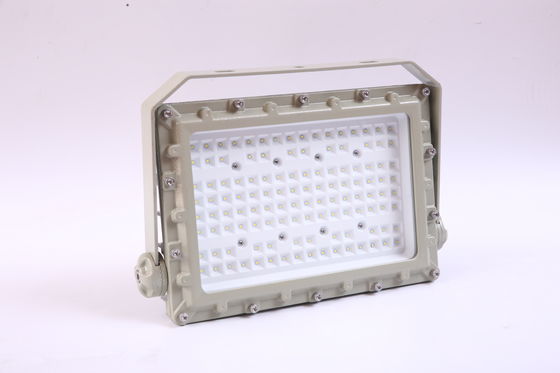

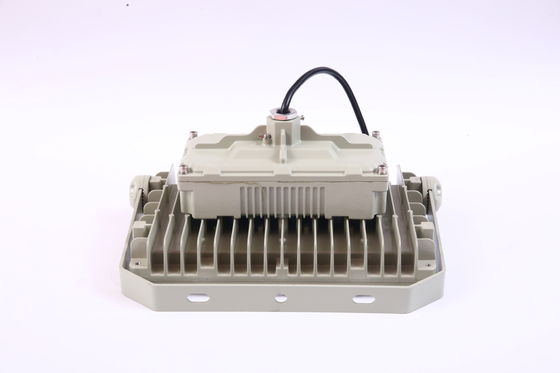

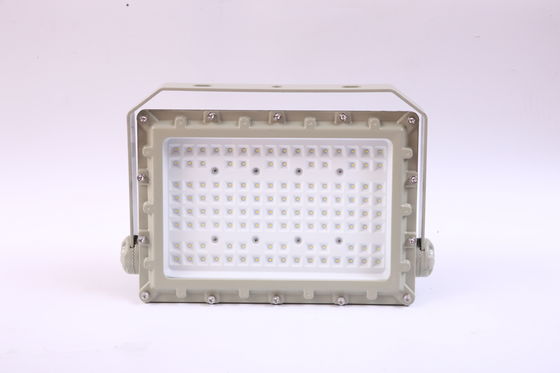

High Power Explosion Proof Aluminum alloy 150 Watt LED Flood Light 50Hz/60Hz outedoor IP66
Features:
Zone 1&2, Zone 21&22
Instant on crisp white light output
High efficiency drivers and LEDs provide Low cost operation in harsh andheavyindustrial applications
Isolated LED compartment reducestemperature within driver housing
Multi choice of beamangle for 45° 90°120°
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
| Housing: | Die-casting aluminum |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| voltage | 100-240VAC, 50-60Hz |
| Power factor | >0.95 |
| THD | <20% |
| Power consumption [W] | 20-80w,100-120w,150-200w,240-300w |
| Colour rendering [CRI] | 70 (±2) |
| Colour temperature [K] | 5500-6000K |
| Luminaire efficiency[Lm/W] | 120-130 |
| Beam angle | 120° (60°, 90° is optional) |
| Degree of protection | IP66 |
| Cable entry | G 3/4” |
| Weight [kg] | 5,8.9,12.2,15.5 |
| Terminal | ≤2.5 mm² |
| Mounting Styles | Ceiling; Wall Bracket; Pendant |
Dimension [mm]
Installation:
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
