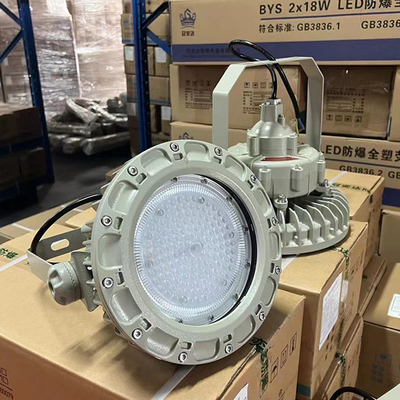

| ハイライト: | Class I Zone 1 explosion proof LED high bay light,250W hazardous area LED lighting,explosion proof high bay light for harsh environments |
||
|---|---|---|---|
Features:
Zone 1&2, Zone 21&22.
Instant on crisp white light output.
High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial
Isolated LED compartment reduces temperature within driver housing
Environmental-friendly and energy saving, simple shape, easy installation
Constant current output, stable performance
Low power consumption, high light efficiency, good color rendering property
Widely used in factories, warehouses, stadiums and other panoramic lighting
Techinical parameters:
| Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, EN60079-0 |
| Rated voltage: AC100-277V |
| Protection grade:IP65 |
| Corrosion-proof grade:WF2 |
| Inlet Thread: G3/4" |
Specification:
| Model | GYD620 |
| Output | 50-250w |
| Light effect | 110-125 Lm/w |
| Voltage | AC100-240V 50/60Hz |
| Size | 400x170mm |
| Weight | 12kg |
| Life Hour | 50000 hours |
| Protection level | IP65 |
| Anticorrosion grade | WF2 |
| Explosion proof mark | Ex d e mb IIC T6 Gb/ Ex tD A21 IP66 T80℃ |
| Color Rendering | ≥70Ra |
| Beam Angle | 120° |
Application:
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Alcohol industry
