商品の詳細:
|
| ブランド: | クラウンエクストラ | モデル: | gyzd |
|---|---|---|---|
| タイプ: | 爆発防止閉塞ライト | 材料: | アルミニウム |
| 力: | 5-40W | 電圧: | 220VAC 24VDC |
| 点滅周波数: | 20-60回/分 | 色: | 赤/透明 |
| 認定済み: | CNEX、EX、IP66、IEC、IECEX | 取り付け: | 壁 |

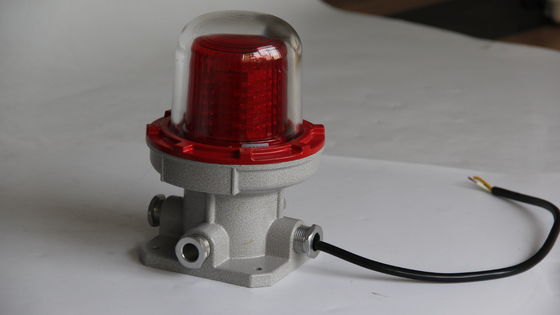

| ハイライト: | explosion proof aviation obstruction light,red transparent aircraft warning light,5-40w hazardous areas light |
||
| oil refineries, chemical and petrochemical plants, offshore plants, onshore plants, oil loading jetties, military ect. |
| Tall buildings |
| Areas requiring high ingress protection and wet environment |
| Can be used in Zone 1, 2(gas) and Zone 21, 22 (dust) |
| Housing: | Die-casting aluminum/Stainless steel |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications | ATEX CNEX CE RoHS ISO9001 |
| Ex Marking | Ex de IIC T6,DIP A20 TA,T6 |
| Classification | Zone 1, 2 & Zone 21, 22 |
| Input Voltage | AC220V, 50Hz |
| IP Degree | IP66 |
| Synchronized Flashing (Wireless) | Optional |
| With solar panel | Optional |
| Light color | Red/Transparent |
| Charging time | 24 hrs |
Ambient temperature | -40℃~+70℃ |
| Model | GYZD81-I | GYZD81-II | GYZD81-III |
| Effective Luminous Intensity | Low intensity >200cd | Low intensity >2000cd | Low intensity >20000cd |
| Power consumption | <8 W | <40W | <100 W |
| Light Source | LED | LED | Xenon lamp |
| Flash Rate (flash per minute) | 20-60 | 20-60 | 16-60 |
| Weight kg | 2.8 | 4.8 | 6.0 |
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
