Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

認証
中国 crown extra lighting co. ltd 認証
中国 crown extra lighting co. ltd 認証
オンラインです

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light
Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

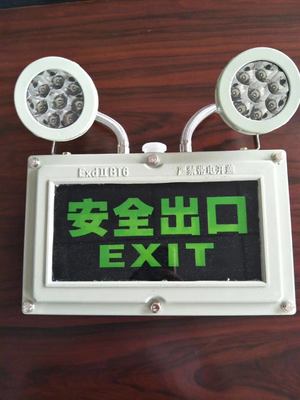

大画像 :  Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

商品の詳細:
起源の場所: 江蘇、中国
ブランド名: Crown Extra
証明: ATEX,CE,ROHS,CNEX,ISO9001
モデル番号: BCJ
お支払配送条件:
最小注文数量: 1PC
価格: USD51 per pc
パッケージの詳細: カートン、木製の箱、パレット
受渡し時間: 15営業日
支払条件: T/T
供給の能力: 50000pcs/月

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

説明
モデル: BCJ 力: 2*3W
サイズ: 243*570*55mm 緊急時: 90分/180分
重さ: 2.7kg アプリケーション: ゾーン1、2およびゾーン21、22
光効率: 100lm/w IP学位: IP65
充電時間: 24時間 取り付けスタイル:
exマーキング: 前d e IIC T6
ハイライト:

220v wall mounted emergency light

,

explosion proof LED fire light

,

double heads emergency light 90min

Wall Mounted 220v Double Heads 90 min emergency time 20*3w Explosion Proof LED Emergency Fire Light



BCJ Series



Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 0

Features:

1. Aluminium alloy for better heat dissipation
2. Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
3. Multi-mounting arrangements to suit any lighting layout
4. Saves in energy, maintenance and installation costs
5. Instant, bright illumination Instant, bright illumination




Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001





Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 1





Electrical Data
Ex Marking Ex e IIC T6/ Ex tD A21 T80
Classification Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D
Application Zone 1, 2 & Zone 21, 22
IP Degree IP66
Light source LED 3W
Input Voltage 220VAC, 50/60 Hz/24VDC/24VAC/36VDC
Light efficiency 100-110lm/w
Work time >120 min
Charging time 24 hrs
Mounting Styles Pendant; Ceiling; Chain; Embedded; Wall; Stanchion





Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.



Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 2

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 3
