商品の詳細:
|
| ブランド: | クラウンエクストラ | 製品名: | 防爆線形ライト/BPY |
|---|---|---|---|
| ハウジング: | ダイキャストアルミニウム | CRI: | RA：≥70 |
| 効率: | 100lm/w | 認定: | CNEX、EX、IP66、IEC、IECEX |
| CCT: | 3000/4000/5000/5700K,他の色温もカスタマイズできます | ビーム角度: | 120-140° |
| 取り付け: | 天井,壁,フレンズ,ペンダント |

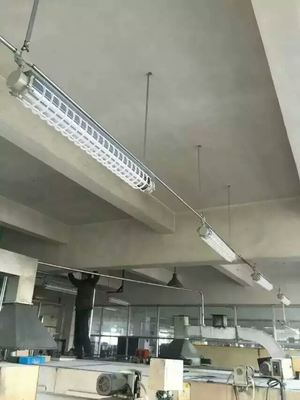

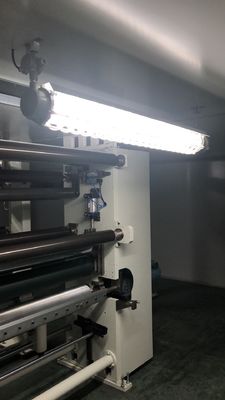

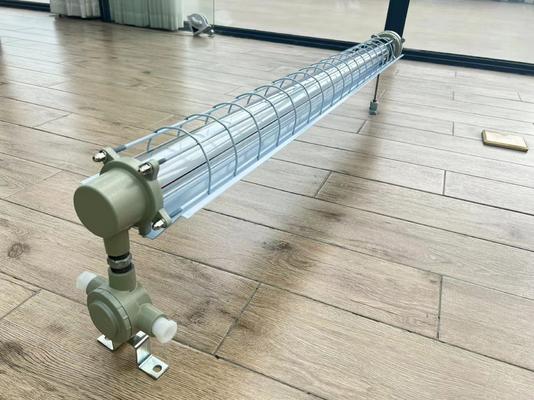

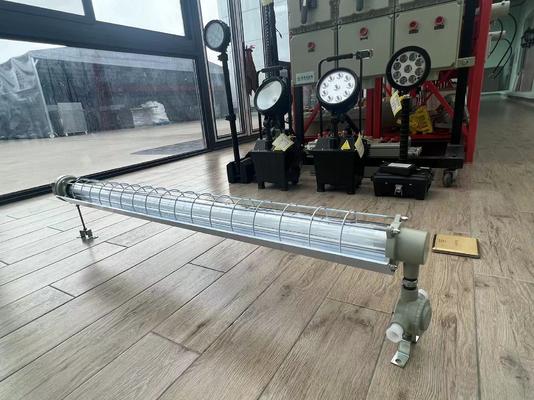

Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp
BPY Series
Features:
1. Die casting aluminum shell, with high voltage electrostatic plastic-spraysurface.
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
| Housing: |
Die-cast aluminum
|
| Exterior: | Stainless steel |
| Globe: |
Tempered glass
|
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| Ex Marking | Ex d e IIC T6 Gb/ DIP A21 TA |
| Classification |
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; Zone 1, 2 & Zone 21, 22
|
| IP Degree | IP66 |
| Corrosion Resistant | WF1 |
|
Input Voltage
|
90-305VAC/50~60HZ or 24V DC
|
| Battery Back-up | Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s |
| Conduit Entries | G 3/4" |
| Terminal | ≤2.5mm2 |
| Mounting Styles | Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
| Model NO. |
BPY-I
|
BPY-II
|
BPY-III
|
| T8Fluorescent tube |
20Wat
|
30Watt
|
40Wat
|
| T5 Fluorescent tube |
14Watt
|
21Watt
|
28Watt
|
| LED tube |
8Watt
|
12Watt
|
18Watt
|
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
