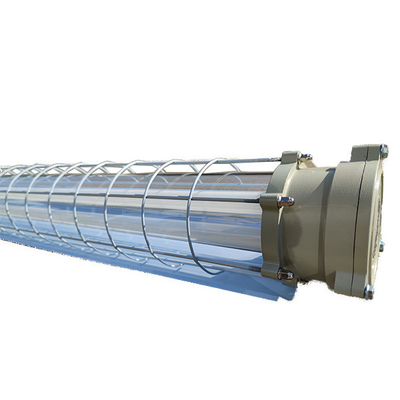

Oil Gas Station Explosion Proof Fluorescent Light 600mm 1200mm 900mm for Hazardous Areas

Introduction
1. Suitable for zone 1 and zone 2 of explosive gas environment;,
2. Suitable for IIA.IIB explosive gas environment:
3. It is suitable for the environment where the temperature group is T1~T6; it is equipped with T8 two-foot fluorescent tubes;
4. Suitable for explosive and dangerous environments such as petroleum extraction, storage, chemical industry, medicine, military industry and military facilities.
Features
1. Aluminum alloy die-casting shell, the surface is high-voltage electrostatic spray;
2. High-strength toughened glass transparent tube;
3. Stainless steel exposed fasteners;
4. The lamp is equipped with a grille to increase the light efficiency of the lamp and effectively reduce the glare;
5. Equipped with well-known brand fluorescent tubes, long life and high luminous efficiency;
6. Modular plug-in design, you only need to loosen the end cap and pull out the core to replace the lamp;
7. The fluorescent lamp with emergency device automatically switches to the emergency lighting state when the power supply line loses power;
8. There are specially designed overcharge and overdischarge protection circuits in the emergency device;
9. Steel pipe or cable wiring.

Installation and maintenance
1. The sealing ring of the lead-in device should be reliably pressed and the cable clamped;
2. The extra unused inlets on the junction box matched with the lamp should be reliably sealed with a plugging plate and a compression nut to ensure explosion-proof performance and protection level performance;
3. Before the lamp is put into use, the internal and external grounding must be firmly and reliably connected to the user's site grounding system;
4. When installing and maintaining the lamp, it is strictly forbidden to open it with power;
5. Regularly check the sealing ring, if it is found to be aging, it should be replaced in time.

Technical Specification:
